This guide helps engineers, contractors, and procurement teams choose the right PE water supply pipe welding machines by comparing common models, technical specifications, and application scenarios. Whether you’re planning small distribution projects or large-diameter trunk mains, understanding model types and specs saves time and ensures reliable joints for HDPE pipelines.
Overview of PE Butt Fusion Welding Machine Types
Manual Machines are cost-effective and ideal for repairs and small-diameter installations. They provide portability and simple operation for field teams.
Hydraulic Machines deliver higher clamping force and repeatability, suited for medium to large pipes and continuous pipeline construction.
Automatic / CNC Machines offer precise control of heating and pressure parameters, recommended for high-volume projects and critical municipal water supply lines.
Key Features to Compare
When selecting a model, compare the following core features to match your project needs:
Nominal pipe diameter range – ensures the machine covers required pipe sizes (e.g., 20–1600mm).
Clamping system – aluminum vs. steel clamps affect weight and corrosion resistance.
Drive and pressure control – manual screw, hydraulic pump, or electric motorized systems.
Automation & control – digital timers, CNC profiles, and weld logs for quality assurance.
Portability & power source – trailer-mounted, skid, or bench; 220V/380V or diesel/hydraulic stations.
Model & Specification Snapshot
| Model | Pipe Range (mm) | Clamps | Drive / Power | Best Use |
|---|---|---|---|---|

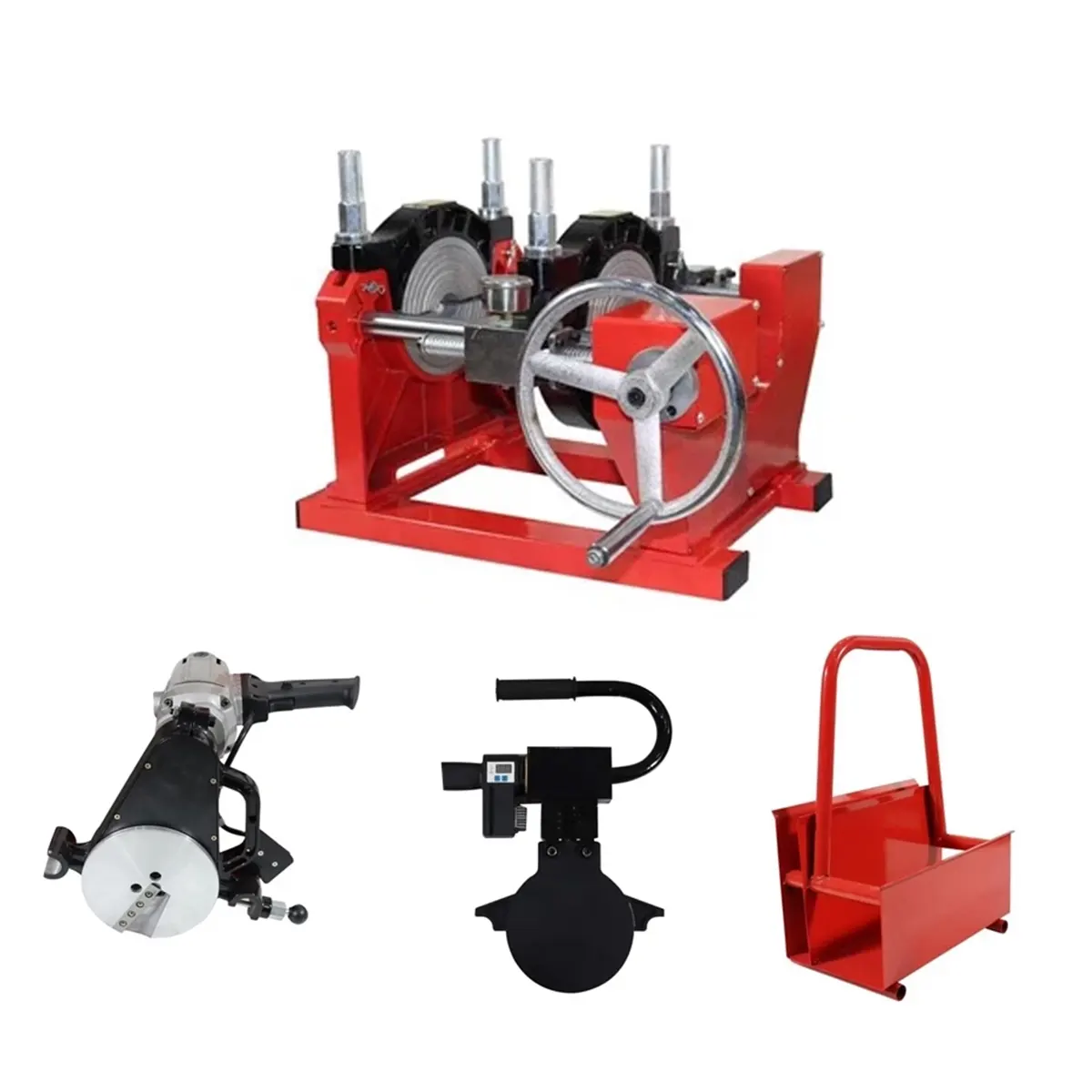

| JQLX-2M Manual | 20–315 | Aluminum | Manual screw | Small jobs, repairs |
| JQH250 / JQH355 Hydraulic | 63–355 | Steel/Aluminum | Hydraulic pump (electric) | Urban distribution |
| JQH1000 / JQH1200 Large Hydraulic | 315–1200 | Heavy-duty steel | Hydraulic station | Trunk mains & water works |
| JQA Series Automatic | 20–630 (model dependent) | Aluminum / modular | CNC / electric | High-precision production |
| JQMA Multi-Angle Fitting | 20–1600 (fittings range) | Specialty fixture | Hydraulic / CNC | Elbows, tees, branch fittings |
Applications & Project Matching
For municipal water supply networks, choose models that provide certified weld records and stable heating control. Small community networks can rely on manual or compact hydraulic machines, while regional trunk pipelines require large-diameter hydraulic units or CNC automatic machines for consistent throughput and quality.
Tips for Procurement & On-Site Use
Inspect clamp compatibility and spare parts availability for chosen models. Verify that the heating plate and facer sizes match pipe diameters. Train operators on proper bead formation, cooling times, and pressure profiles to avoid weak joints. For long projects, consider machines with easy-to-source consumables and local service support.
Maintenance & Safety Reminders
Schedule regular hydraulic oil checks, heater plate cleaning, and facer blade inspections. Always follow local safety regulations for hot plate handling and hydraulic equipment operation. Keep weld logs and QC records for compliance and warranty purposes.
About the Manufacturer
JQ-Fusion offers a complete lineup of manual, hydraulic, and automatic butt fusion machines for HDPE water and gas pipelines, with customizable solutions for projects worldwide. Learn more at https://jq-fusionwelding.com/
