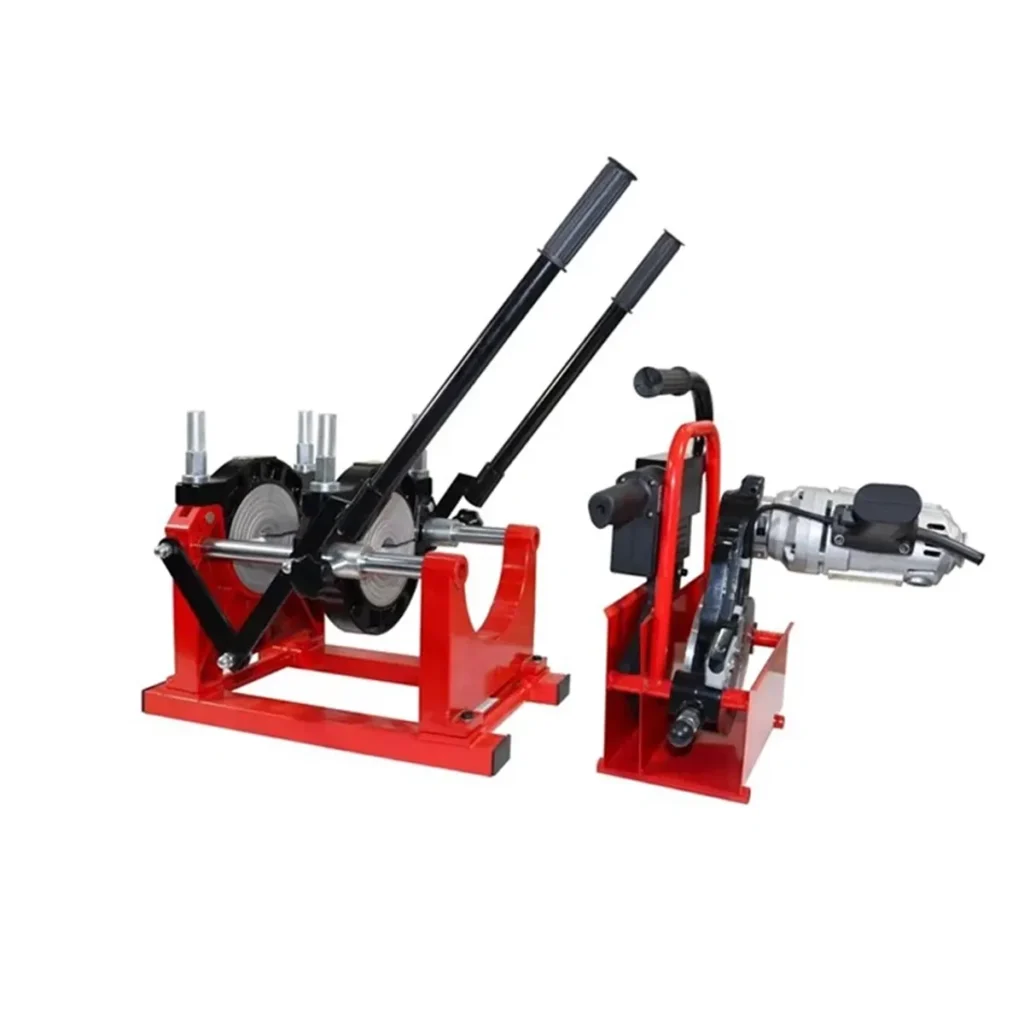

JQST Manual Butt Fusion Welding Machine

The manual butt fusion welder machine is a simple, reliable, and cost-effective device designed for joining HDPE and PP pipes ranging from 20mm to 110mm in diameter. Equipped with a durable frame, a PTFE-coated heating plate, a manual facing tool, and interchangeable clamping inserts, it enables clean and reliable pipe joints without the need for hydraulic power or electricity. Supplied with a portable carrying case, it is an ideal choice for small-scale projects, repair operations, and construction work in remote locations (including water supply, irrigation, and low-pressure gas systems).

Place of Origin: China
Inventory: in stock
Model: JQST
Connection Method: Manual butt fusion
Color: Available in 40 custom colors
Minimum Order Quantity: 1 Set
Price: Negotiation
Delivery: 15-30 days
Terms of Payment: L/C, T/T, Alipay, Moneygram and Western Union

Butt Fusion Machine Details

JQST Manual Butt Fusion Machine	JQST160	JQST200
Applicable Pipe Diameter	40mm-160mm	63mm-200mm
Heating Plate Max. Temp.	270℃	270℃
Temp. deviation in surface (170–250)	±5℃	±5℃
Max. Tolerance of Welding	0.3MM	0.3MM
Working Voltage	220V	220V
Working Frequency	50–60HZ	50–60HZ
Power / Voltage of Heating Plate	1.6KW / 220V	2KW / 220V
Power / Voltage of Planning Tool Motor	1.2KW / 220V	1.2KW / 220V
Total Power	2.8KW	3.2KW
Weight	38kg	43kg

HDPE Pipe Jointing Machine Features

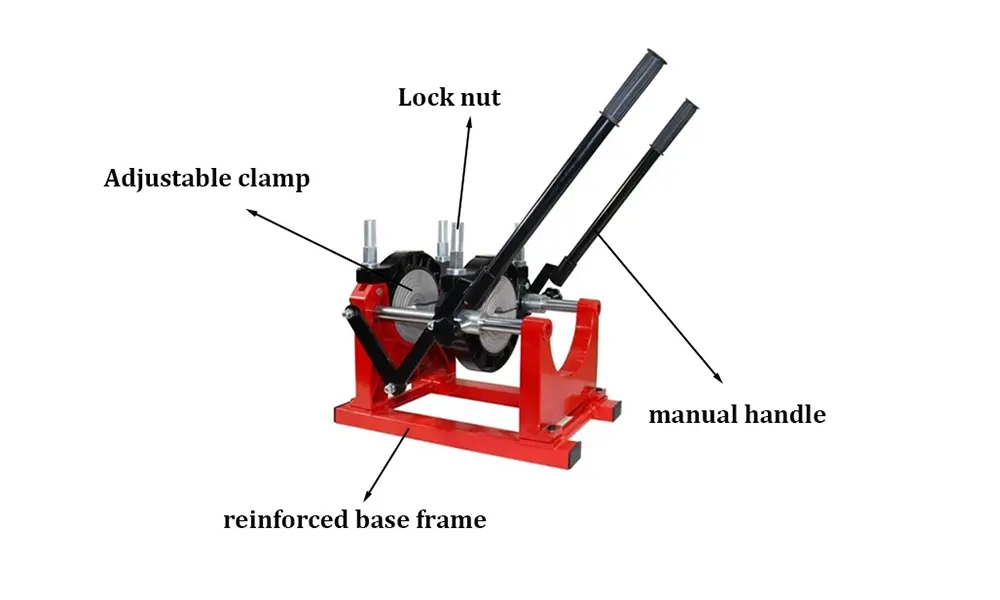

The frame of this manual butt fusion welder is equipped with adjustable clamps, locking nuts, a pressure gauge, a manual handle, and a reinforced base, facilitating easy adjustment and secure fixation; the pressure is visible in real-time, ensuring stable and reliable operation.

This manual HDPE pipe jointing machine trimmer offers precise cutting of thermoplastic pipe ends post-welding, ensuring smooth, leak-proof joints. Its compact, portable design makes it easy to use on-site, while its durable construction guarantees reliable performance for efficient, high-quality trimming.

The digital temperature-controlled heating plate in this manual butt fusion welding machine ensures precise temperature control and uniform heating. Its non-stick Teflon coating prevents adhesion, while heating pipe ends to a molten state for strong, leak-proof welds.

This manual butt fusion welding machine trimmer stand provides stable support during trimming, enhancing precision and safety. Its durable metal construction ensures long-lasting use, while the ergonomic handle offers easy handling and portability.

Manual Pipe Welding Machine Advantages

Ease of Operation: The manual pipe welding machine features a simple design that is easy to operate, making it suitable for operators of varying skill levels.
High Adaptability: Capable of performing welding operations in a wide variety of environments, making it particularly suitable for on-site construction and pipeline installation work.
High Welding Quality: Pipe welding machine delivers stable welding performance, ensuring the strength and leak-tightness of pipe joints to meet high-standard requirements.
Compact and Portable: The device features a compact size, making it easy to carry and store; it is well-suited for small-batch production or operations in confined spaces.
High Durability: Manufactured using high-quality materials, ensuring stability and durability during prolonged use, making it suitable for long-term field operations.

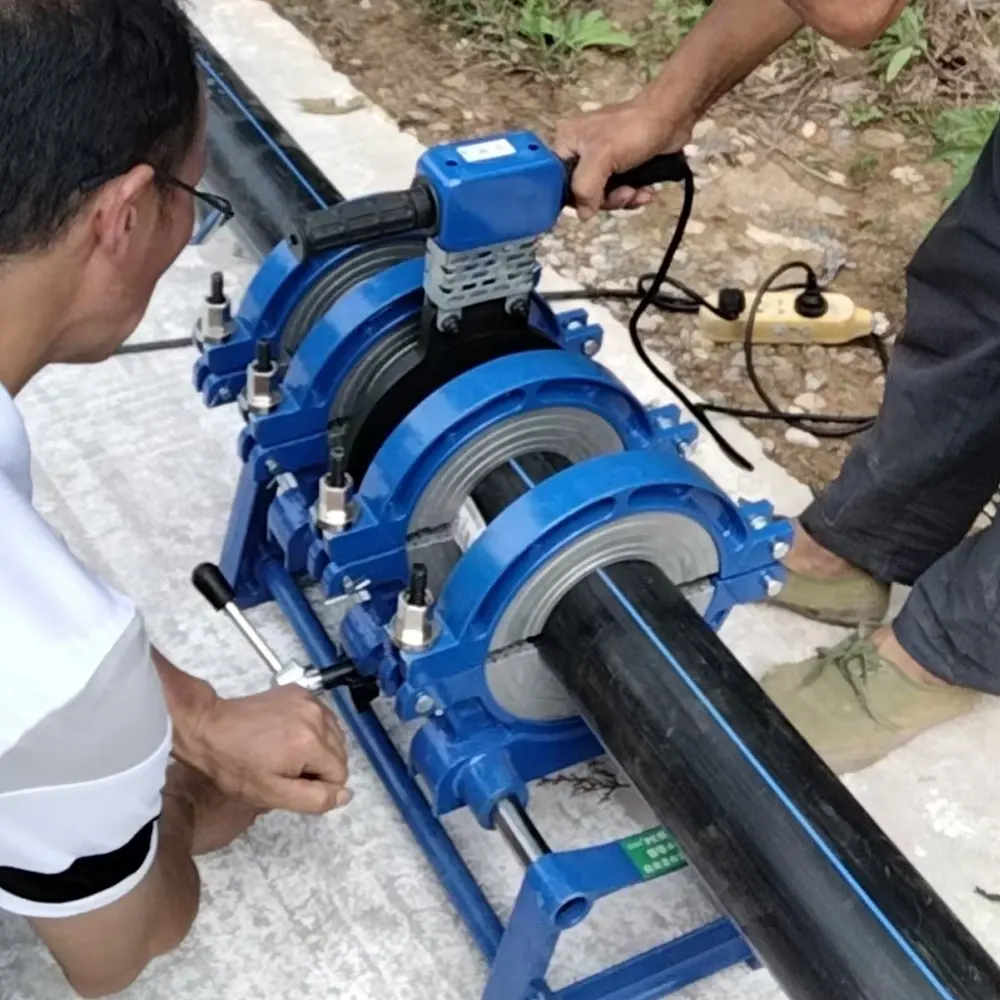

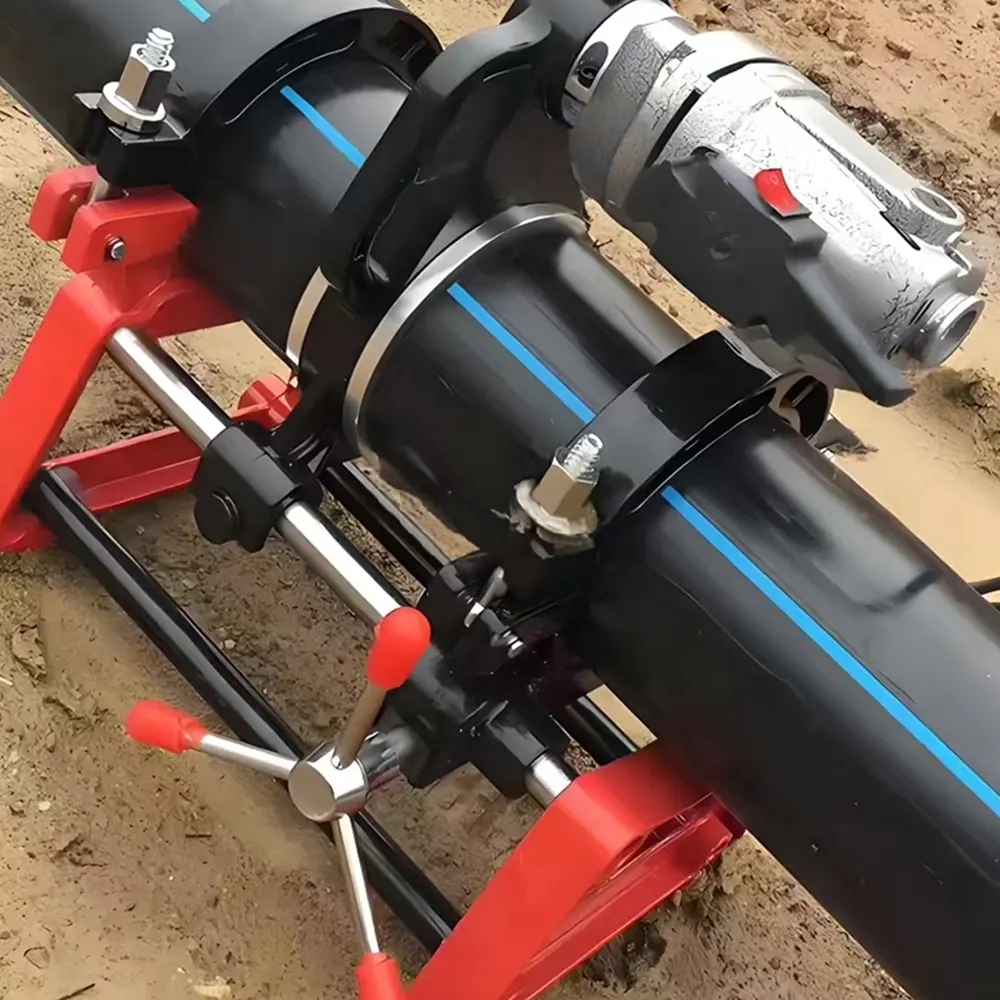

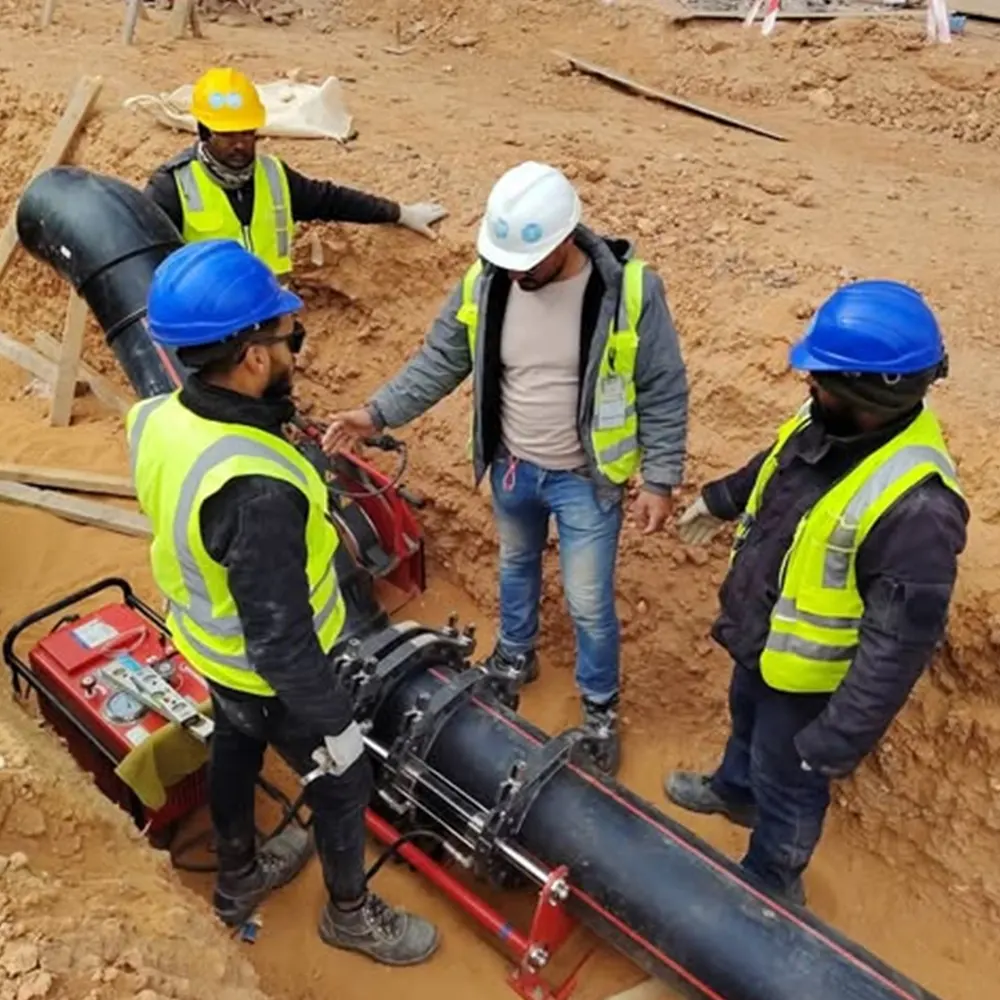

Butt Fusion Welding Machine Application

The manual pipe welding machine is flexible, cost-effective, and easy to operate, making it suitable for a wide range of field environments while ensuring high-quality welded joints. With its simple maintenance and low repair costs, it is particularly well-suited for small-scale projects and those with limited budgets.

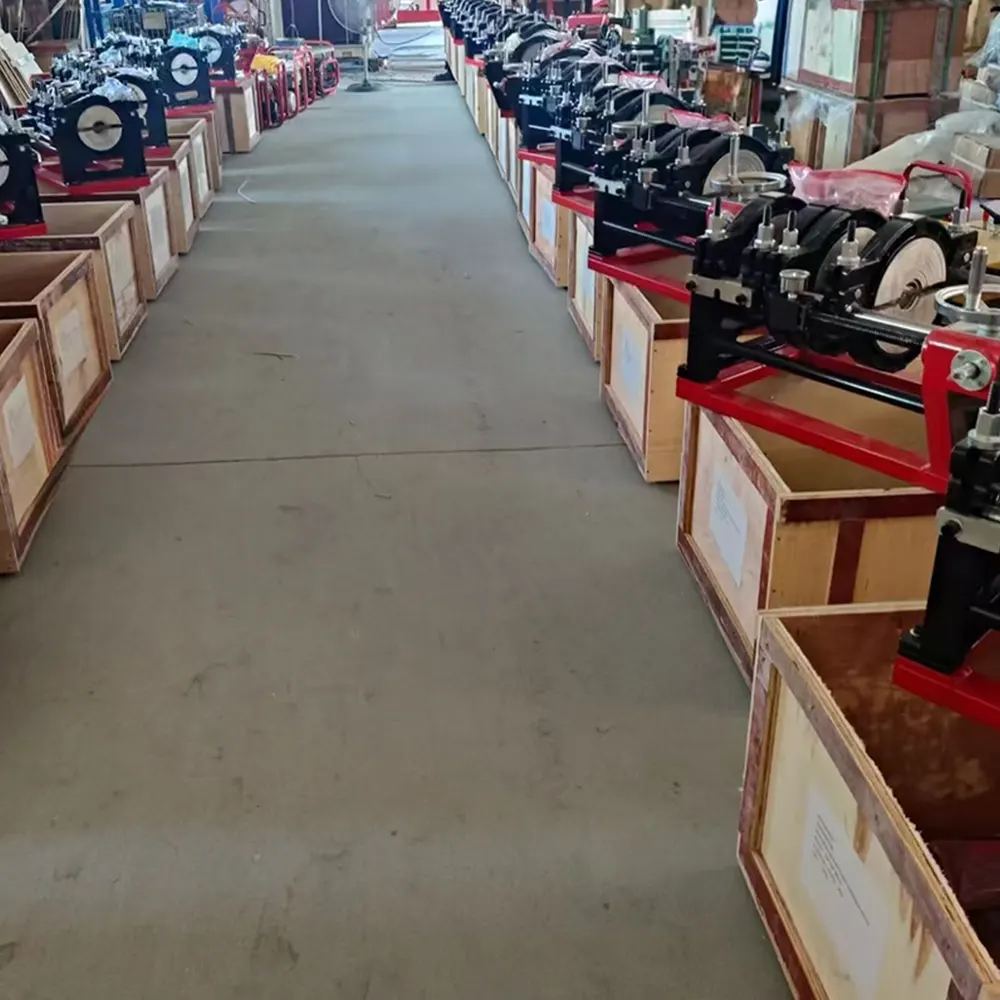

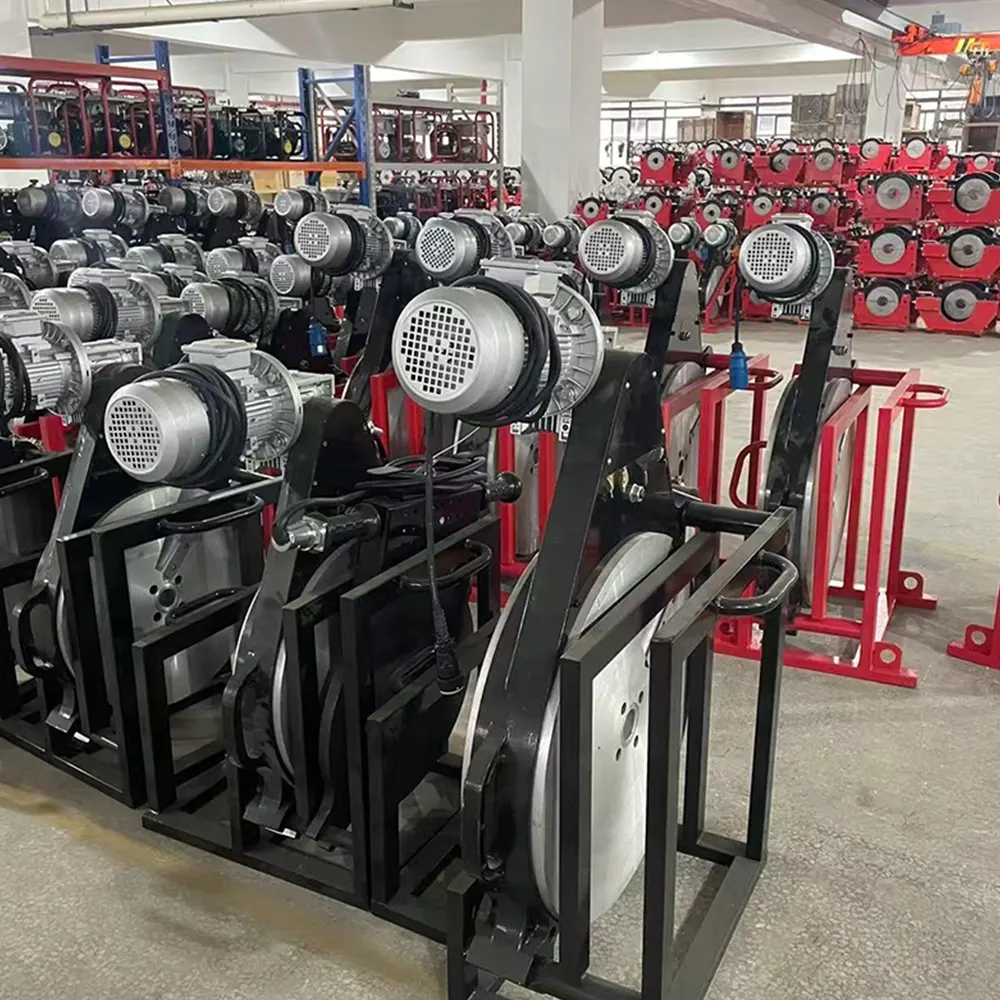

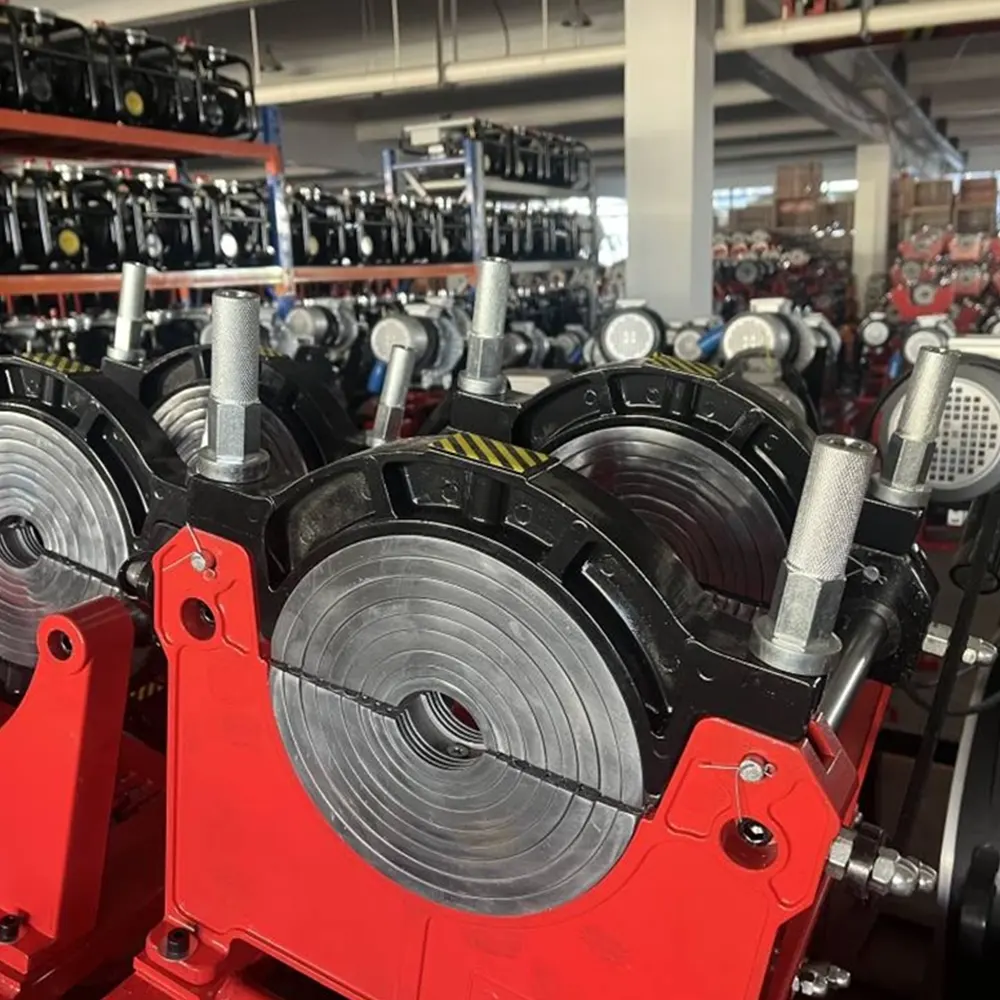

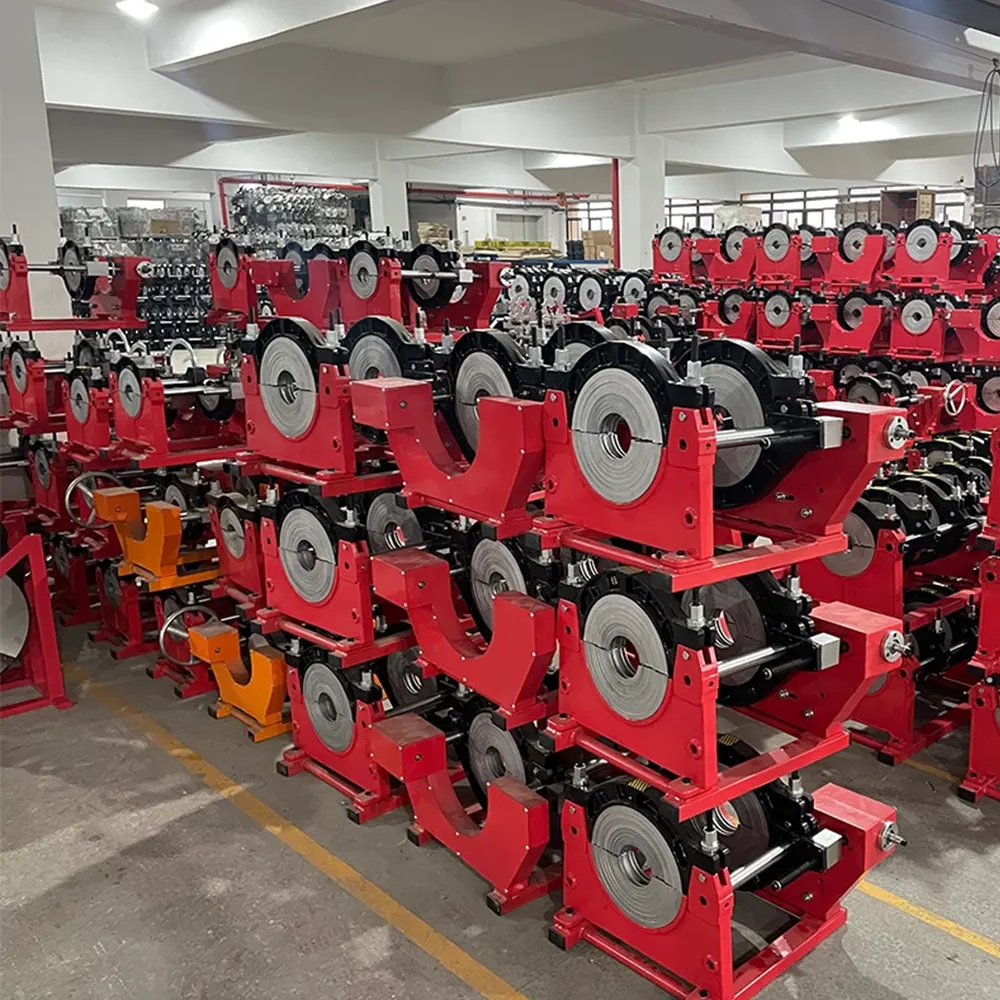

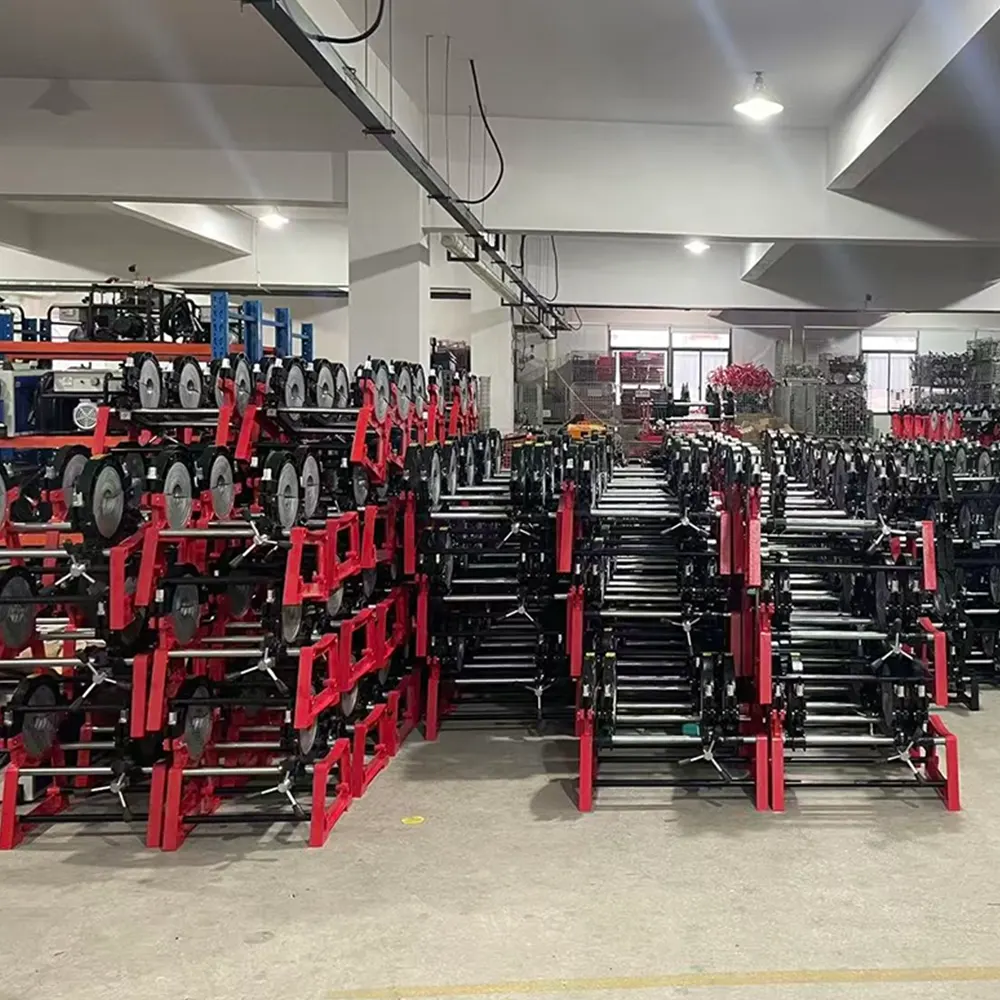

Inventory in Stock – Immediate Delivery

JQ-fusion maintains an ample inventory of multi-angle pipe welding machines and possesses robust, large-scale production capabilities, ensuring rapid delivery for orders of any size—whether small batches or large-scale consignments. Our production system has been meticulously optimized to efficiently address the diverse needs of our clients, guaranteeing both timely delivery and consistent product quality.

Packaging & Shipping

JQ-fusion possesses robust packaging and shipping capabilities, employing standardized, secure packaging protocols designed to ensure that products remain completely intact throughout the transit process. Furthermore, we have established long-term partnerships with numerous reliable shipping carriers and maintain well-established logistics channels to facilitate efficient and timely delivery. Leveraging our ample inventory and flexible supply chain management, we are fully equipped to fulfill large-volume orders, striving to ensure on-time delivery to meet our clients’ production requirements.
