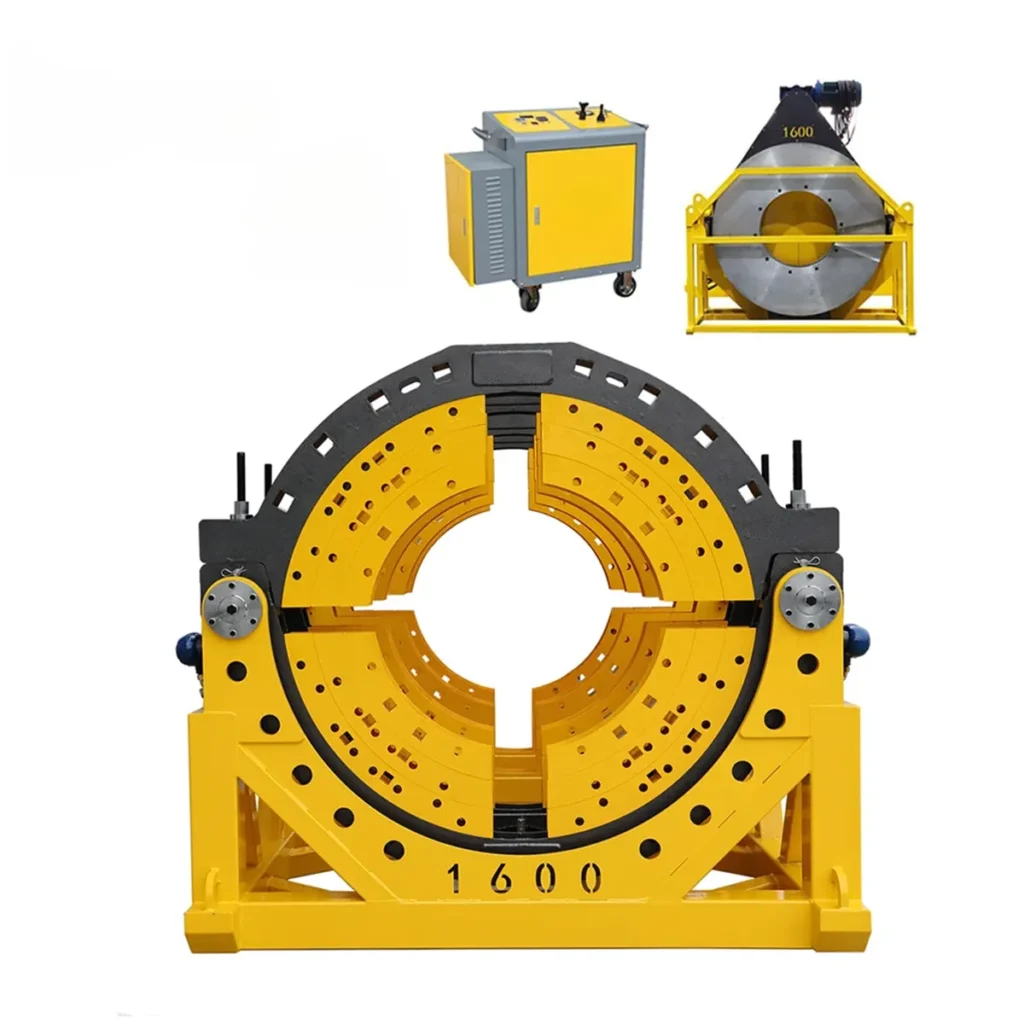

JQH1600mm Hydraulic Butt Fusion Welding Machine

The JQH1600mm Hydraulic Butt Fusion Welding Machine is a professional, high-efficiency thermoplastic pipe welding equipment, mainly used for hot-melt butt welding of PE, PP, PVDF and other plastic pipes. It adopts stable hydraulic drive system and precise temperature control system, with a processing range of 1000mm to 1600mm, which can meet the welding needs of different pipe specifications in water supply, gas, chemical, agricultural irrigation and other construction projects.The Butt Fusion Welding Machine also features wide voltage compatibility, making it suitable for use in outdoor and challenging construction site environments, and is the ideal choice for professional large-diameter pipeline construction.

Place of Origin: China
Inventory: in stock
Model: JQH1600
Connection Method: Hydraulic butt fusion
Color: Available in 40 custom colors
Minimum Order Quantity: 1 Set
Price: Negotiation
Delivery: 15-30 days
Terms of Payment: L/C, T/T, Alipay, Moneygram and Western Union

Butt Fusion Welding Machine Details

Butt Fusion Welding Machine Features

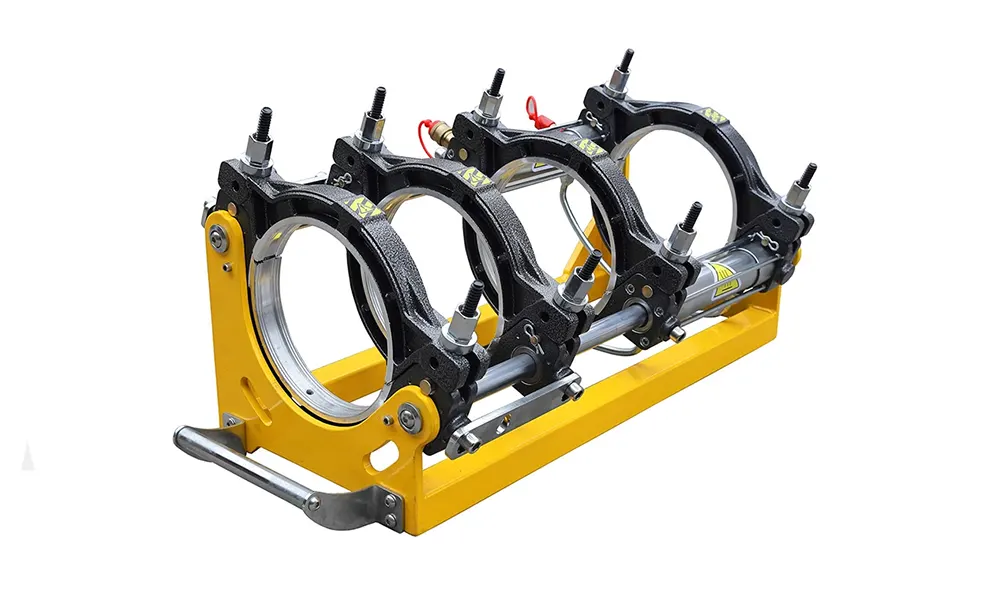

The frame of this butt welding machine features a reinforced steel structure and a precision hydraulic system, combining high rigidity, stability and operational flexibility to ensure reliable performance during prolonged continuous operation.

This is a portable hydraulic power unit for hydraulic butt fusion welding machines, providing stable, adjustable hydraulic pressure with precise pressure gauge control, a rugged protective frame, and safety features for reliable HDPE pipe welding in construction projects.

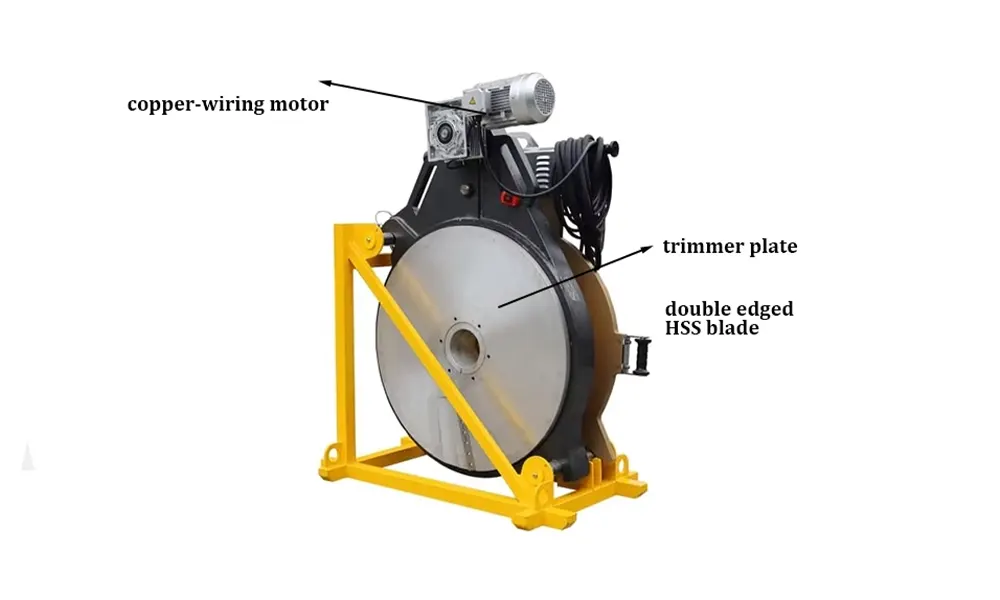

The Pipe Welding Machine Trimmer is equipped with a high-torque motor featuring a safety switch to prevent accidental operation. Paired with dual high-speed steel blades, it delivers precise, high-speed milling results, thereby ensuring high-quality welds.

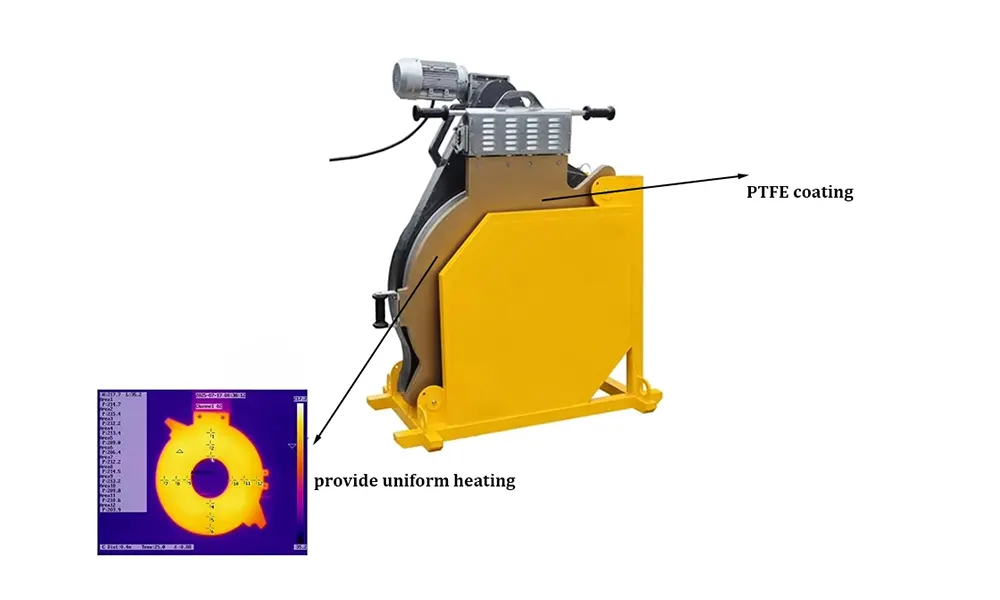

High quality resistance wire ensures rapid, uniform heating and excellent thermal stability for consistent welding results. The heating element features a premium Dupont or Daikin non-stick coating, offering superior anti-adhesion, corrosion resistance, and easy maintenance—delivering clean, damage-free pipe ends for every weld.

Butt Welding Machine Advantages

Material Differentiation: Aluminum is used for sizes 630mm and below; iron/steel is used for sizes above 630mm.
Lifting Design: The clamp features pre-drilled lifting holes to facilitate hoisting by a crane.
Interlocking Tile Structure: Upgraded from two tiles per layer to four, offering ease of disassembly and superior wrapping capability.
Fixing Effect: It can completely fix HDPE pipes, avoiding the problems of low clamping force and low fit caused by hollow design.
Anti-Slip Design: The interior of the clamp is equipped with anti-slip blocks to further reinforce the pipe's fixation stability.

HDPE Pipe Welding Machine Application

Pipe welding machines are widely used in the installation, repair, and maintenance of various piping systems. Through efficient and precise welding techniques, they ensure the leak-tightness and durability of pipe connections.

Inventory in Stock – Immediate Delivery

JQ-fusion has sufficient stock of hydraulic butt fusion machines, with stable mass production capacity to ensure fast delivery for both small and large orders.

Packaging & Shipping

JQ-fusion has strong packaging and shipping capacity, with standardized safe packaging, mature logistics channels, and sufficient inventory to ensure fast, on-time delivery for bulk orders.
